智慧網管型乙太網路接取機架

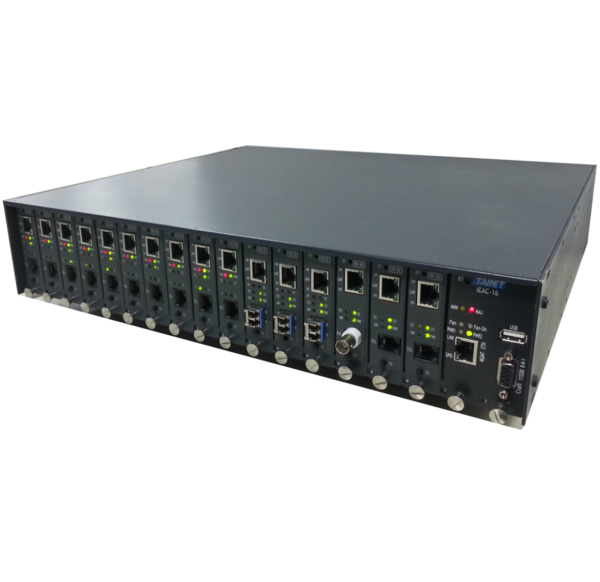

iEAC-16 (智慧網管型乙太網路接取機架)，為 2U 高 19 英寸標準機框，包含控制單元 MCU-16，雙備載 AC/ DC 電源模組，以及 16 個可以自由配置 FNTU、SNTU 和 ENTU 卡板的插槽，所有模組均支援熱插拔，管理方式包括 SNMP, Web GUI, CLI ( Telnet 或 craft 管理口)。

使用不同類型的卡板，iEAC -16 能夠實現使用 100 Base-FX/ 1000 Base-X 光纖、G.SHDSL.bis 規格的 2W/ 4W/ 8W 銅線、VDSL2 線路、或同軸電纜來傳輸 100/1000 Base-T 乙太網業務，種類多樣的線路卡使得 iEAC-16 對乙太網業務的承載更加靈活有效，可以同時連接光纖或銅線，適用場景非常豐富，該產品是一款理想的高密度乙太網延伸設備。

報價  型錄

分類:

  • 特色

    • 電信等級高密度乙太網路延伸設備
    • 可提供光纖網路的連接和轉換
    • 管理方式：SNMP/NMS, Web GUI, CLI
    • 多線對綁定功能，實現兩倍或四倍 頻寬
    • 中心端和遠端均支持鏈 路層OAM
    • 單一按鍵實 現連接診斷功能
    • 卡板均支持熱插拔，雙電源備份， 節能風扇

  • 規格

    System Feature
    • 2U high, 19” chassis with 16 slots for line cards
    • Real Time Clock and Reset button
    • Power and Fan alarm LED indicators
    • Dual Hot-Swappable AC/DC power for redundancy
    • Green Fan facility, turns ON and OFF with internal temperature
    • Auto detection on available line cards and chassis
    • All plug- in cards are hot swappable
    System cards
    • iEAC-16：Intelligent Ethernet Access Chassis
    • MCU-16：Controller of iEAC-16 with NMS/WEB agent
    • iEAC-AC：AC Power Module
    • iEAC-DC：DC Power Module
    • iEAC-2AC：Dual AC Power Module (Optional)
    • iEAC-2DC：Daul DC Power Module (Optional)
    • iEAC-FAN：FAN Module
    Line cards
    • FNTU 761C, 761CU：Optical Fiber MUX, Gigabit Media Converter with 4 Balanced/ Unbalanced E1
    • ENTU 763C/GE：1000 Base-X SFP to 10/ 100/ 1000 Base-T Ethernet
    • SNTU 764C/2W, 764C/4W, 764C/8W：G.SHDSL.bis 2/ 4/ 8-wire RJ-45 to 10/ 100 Base-T Ethernet
    • SNTU 765C/4W：G.SHDSL.bis 4-wire RJ-45 to 10/ 100 Base-T Ethernet and E1 interface
    • SNTU 764FC/2W, 764FC/4W, 764FC/8W：G.SHDSL.bis 2/ 4/ 8-wire RJ-45 to 10/ 100 Base-T Ethernet
    • ENTU 773C：Dual optical link Gigabit Ethernet NTU
    • ENTU 783C (Up to 16 Cards in iEAC-16)：Triple optical link 10G Ethernet NTU **
    Management & OAM Functions
    • Management with user privilege：Web GUI, CLI (Telnet, RS-232 craft port)
    • Management IP can be set as static or dynamic IP
    • Supports VLAN for 802.1Q tagging/ un-tagging
    • System logs and SNTP time synchronize to RTC
    • Built-in non-volatile memory to store line cards, remote units, PM data and chassis configurations
    • DSL/ Optical Link status on web management
    • SNMP alarm trap
    • Alarm LED indicator monitoring
    • Firmware upgradable for system and Line cards
    LED Indicators
    • MCU-16：MAJ/ MIN ALM, FAN, FAN ON, PWR1, PWR2, LAN LNK/SPD
    • FNTU 761C：PWR, LNK, TST, ALM, E1, LAN LNK/ SPD
    • ENTU 763C：PWR, CO, LNK, TST, RF, TP, LAN LNK/ SPD
    • SNTU 764C：PWR, CO, ALM, TST, L1 ~ L4, LAN LNK/ SPD
    • SNTU 765C：ALM, TST, DSL1 ~ 2, E1, LAN LNK/ SPD
    • ENTU 773C：PWR, ALM, LNK1, LNK2, UTP LNK/ SPD, DPX
    • ENTU 783C：PWR/ ALM、Link1 ~ 4
    Power Requirement
    • Hot Swappable Redundant Power Modules
    • iEAC-AC：AC Power Input: 100 ~ 240V, 50/60Hz (160W)
    • iEAC-DC：DC Power Input: -36 ~ -72V (160W)
    • iEAC-2AC：Dual AC Power Input: 100 ~ 240V, 50/60Hz (200W, for iEAC-16 full of ENTU 783C)
    • iEAC-2DC：Dual DC Power Input: -36 ~ -72V (200W, for iEAC-16 full of ENTU 783C)
    Dimension
    • iEAC-16: 440 (W) x 390 (D) x 89 (H) mm
    Operating Environment
    • Operation Temperature：0 ºC ~ 50 ºC
    • Storage Temperature：-20 ºC ~ 70 ºC
    • Humidity：90%, non-condensing

    ** When iEAC-16 is fully plugged into ENTU 783C, it is recommended not to plug SFP RJ45 Transceiver into ENTU 783C, which may cause insufficient power supply.
