規格

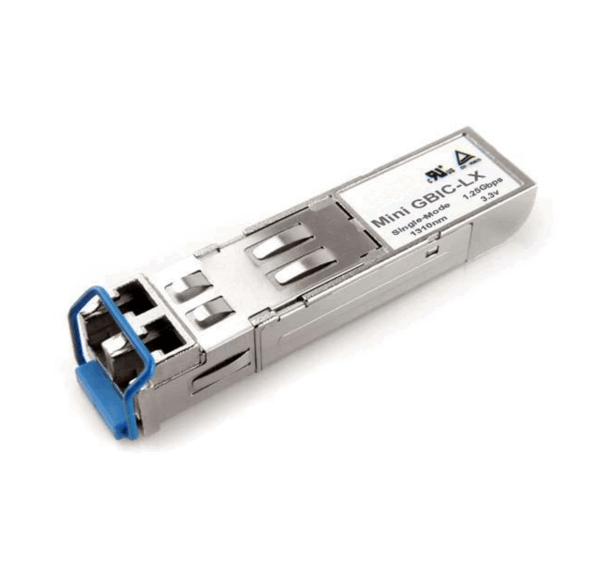

SFP
- Compliant with Fiber Channel 100-M5-SN-1, 100-M6-SN-1, 200-M5-SN-1, 200-M6-SN-1, 400-M5-SN-1, 400-M6-SN-1 Std.
- Compliant with Fast Ethernet and IEEE 802.3z Gigabit Ethernet Std.
- Compliant with SDH STM-1/4/16, SONET OC-3/12/64 Std.
- Industry Std. Small From Pluggable (SFP) MSA compatible
- Wavelength: 850nm VCSEL, 1310nm FP, 1550nm DFB
- Bit Rate: 155Mbps, 1.25Gbps, 2.125Gbps, 2.67Gbps, 4.25Gbps
- Transmission distance: 550m, 2km, 10km, 40km, 50km, 70km, 90km, 110km
- Power supply: 3.3V
- Connector: Duplex LC connector
- Class 1 laser product complies with EN60825-1
- DDM (Digital Diagnostic Monitoring) function compliant with SFF 8472
-

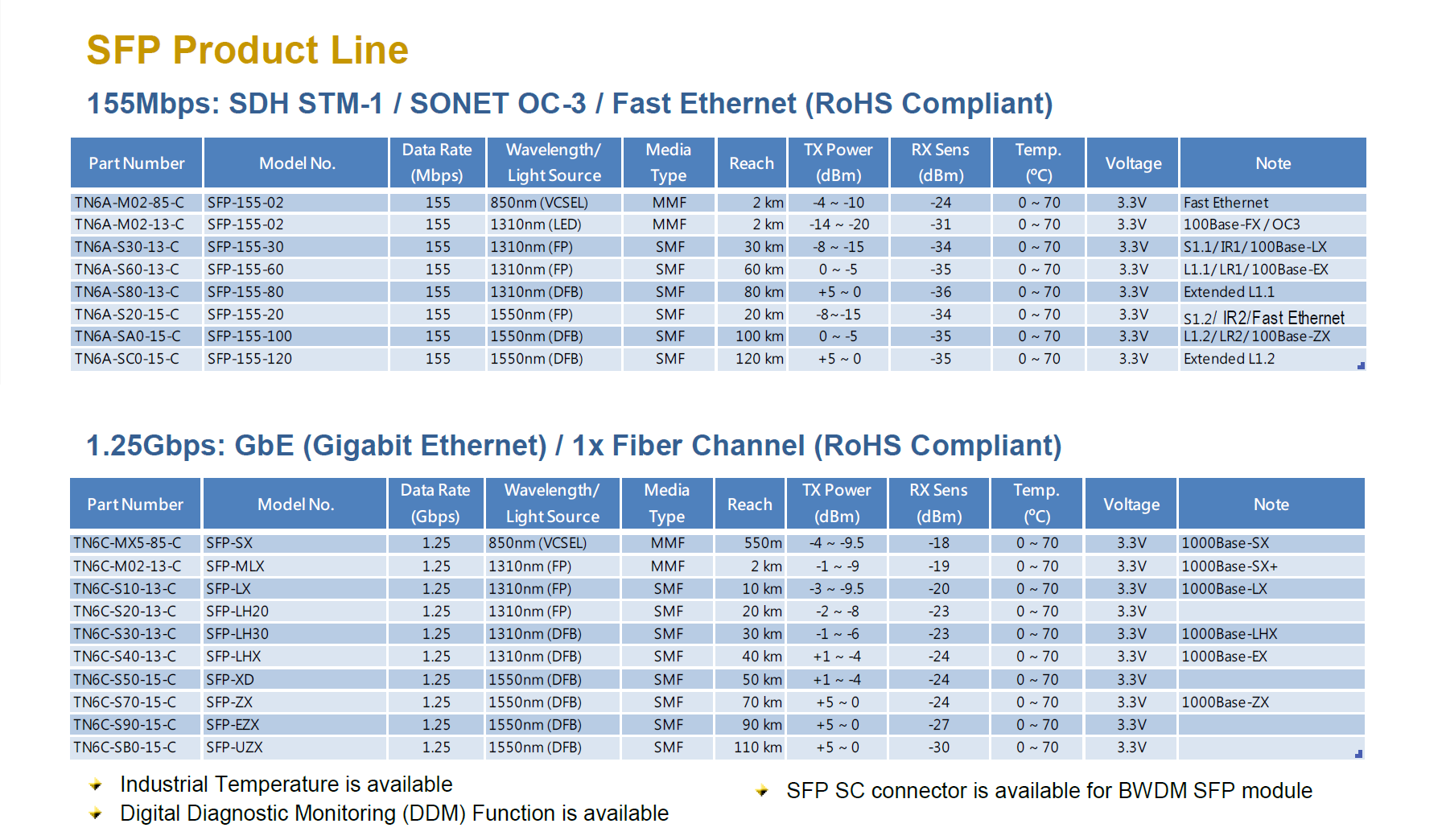

型號
